Wireless Monitoring Systems

Standard

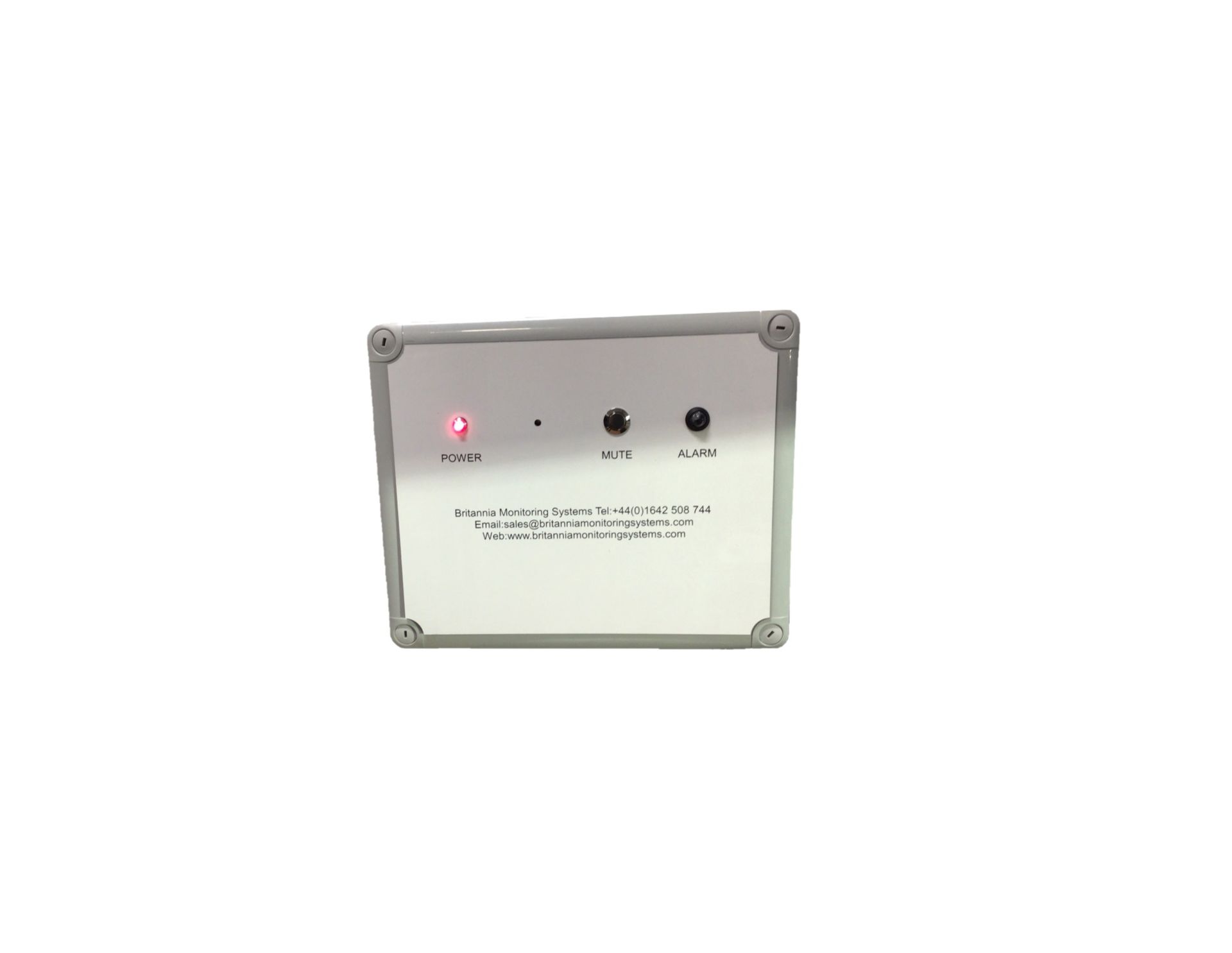

Our most common wireless solution is the Wireless monitoring system.

Consisting of a main panel that contains a data logger (reciever), charging circuit, back up battery, GSM*(Test message alerts ), Auto Dialler* (Pre-recorded voice mail alerts) & MOXA* (LAN Connectivity).

An audio and visual alarm is also fitted onto the main panel as well as a power supply indicator and mute button.

Specifications
up to 250 channels/ inputs
High & low alarm thresholds with a delay option
Adjustable Logging interval
Standalone system - works without a PC or internet connection.
We provide full installation, servicing, calibration and maintenance packages. Please visit our service contract page for more information.

* Indicates optional hardware - please see Extra's section for more information.
DATASHEET
Secure

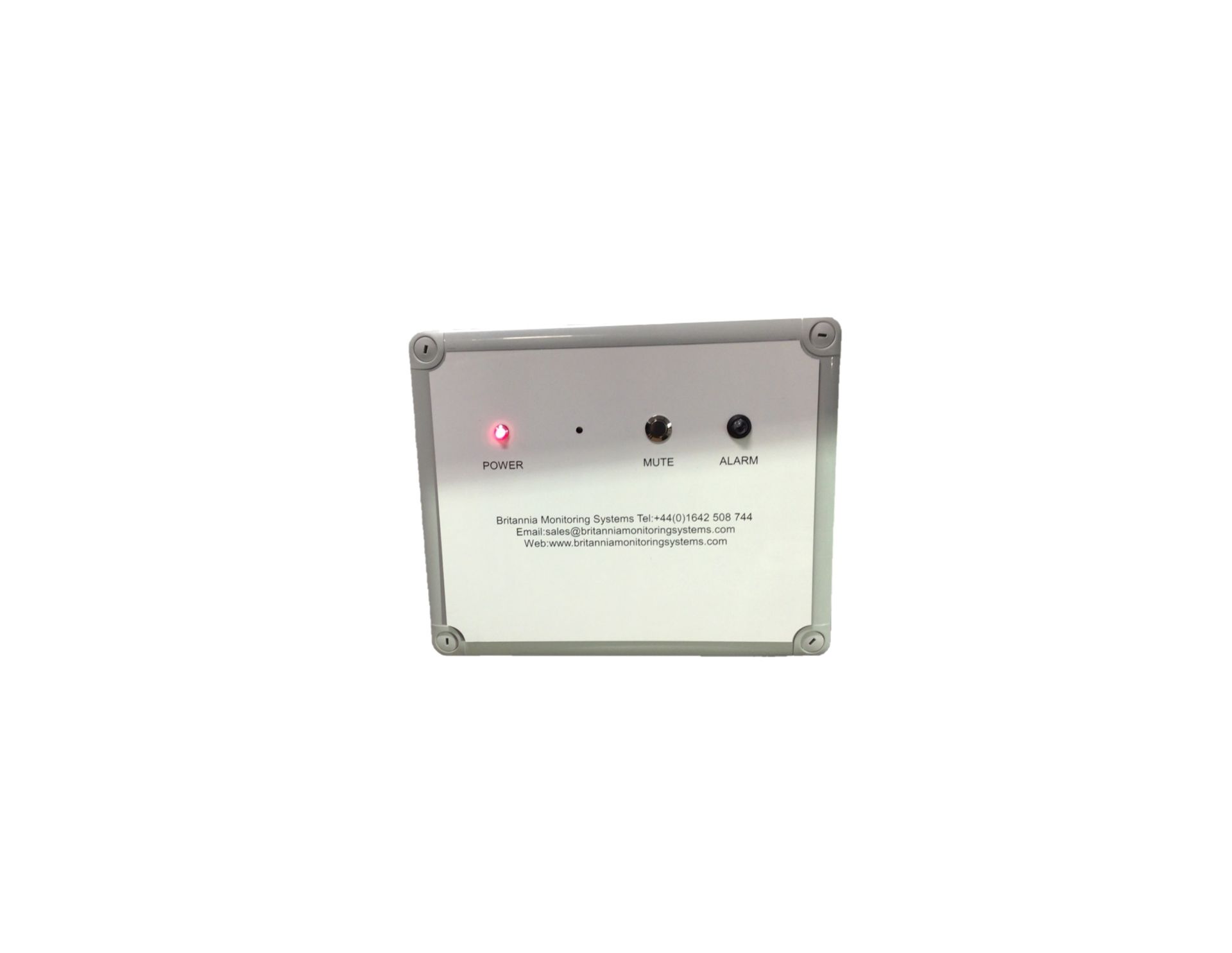

The Secure wireless monitoring system is our most protected system.

Consisting of a main panel that contains a data logger (reciever), charging circuit, back up battery, GSM*(Test message alerts ), Auto Dialler* (Pre-recorded voice mail alerts) & MOXA* (LAN Connectivity).

An audio and visual alarm is also fitted onto the main panel as well as a power supply indicator and mute button.

Specifications
up to 250 channels/ inputs
High & low alarm thresholds with a delay option
Adjustable Logging interval
Standalone system - works without a PC or internet connection.
Darca Secure Software package

We provide full installation, servicing, calibration and maintenance packages. Please visit our service contract page for more information.

* Indicates optional hardware - please see Extra's section for more information.
DATASHEET
Cloud

Our Latest wireless solution is a Cloud based System.

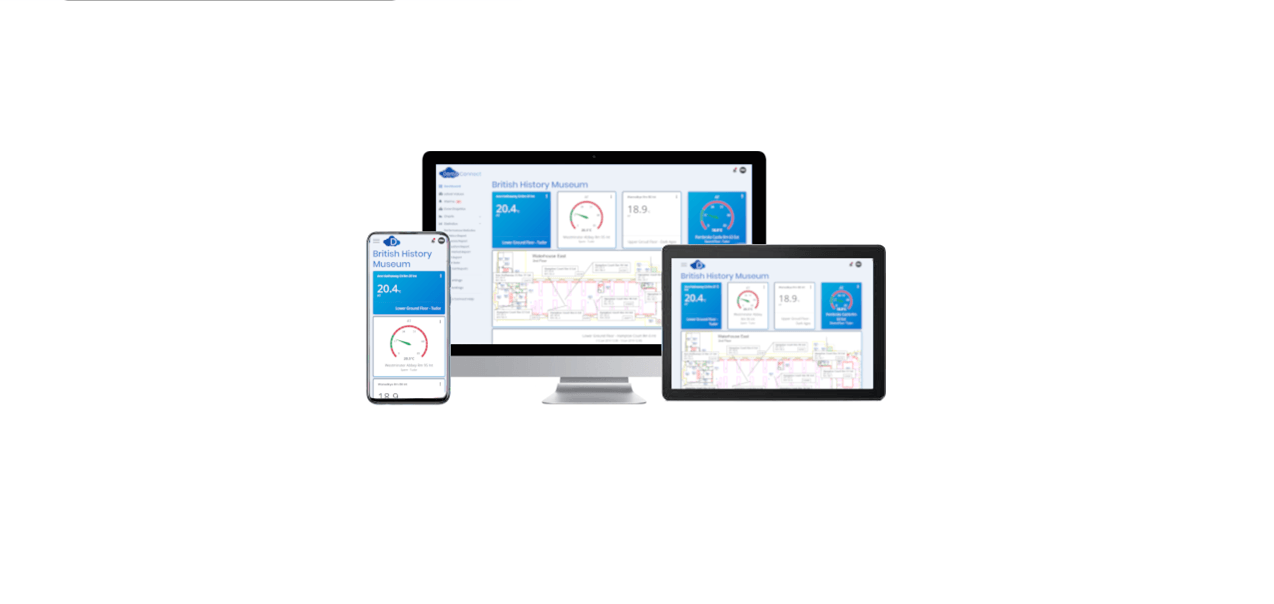

Equipment data is collected and then pushed to the cloud so it can be accessed anywhere, on any device with an internet connection on Darca Connect

Darca Connect is synced with your logger, enabling a number of settings to also be configurable remotely such as channel alarm thresholds, telephone numbers and email address for alerts.

Each user has their own dashboard that can be personalised to view sensor values, graphs, battery levels and zone charts displaying latest readings.

A number of reports can be generated at frequencies that suit you to inform you about hardware and data statistics.

Behind the scenes the same reliable data logger collects all the information should the data connection be interrupted.

We provide full installation, servicing, calibration, and maintenance packages. Please visit our service contract page for more information.

DATASHEET

Software

Darca Connect (DC) - Cloud Based Software
Darca Connect (DC) - Cloud based software.
- Customisable Dashboards - Allows individual users to create their own dashboard with a range of widgets to display the information that matters to you
- Alarms & Notifications - Get notified via email or SMS if readings go outside of your defined alarm limits. Display data overlaid over floorplans and view historical data on charts, so you can see exactly where the issue is and what’s been going on.
- Charts, Reports & Analysis - View charts with historic data, overlay real time data on floor plans and generate a range of statistics and reports for powerful analysis of your data. Export these to share with key stakeholders or automate email report at set intervals.
- Zone Graphics - Overlay the most recent data on floorplans, with anything outside of threshold or alarm limits highlighted.
- Metering & Latest Values - View latest values and perform quick hardware checks, with filtering and sorting options to show the area of your site that you want to see.
- Automation - A Range of options for automating your workflow, from automatically downloading the latest data, to sending out customised reports at defined intervals.
- User Management - Add users, change their permissions, and restrict what area of a site they can see or manage.
Darca Hub (DHUB) - Offline Enhanced Software

o User friendly interface to configure all settings such as alarm thresholds, logging, Text message telephone number (Requires additional hardware)
o Automated Data collection and analysis
o Exportable to popular spreadsheets
o Real time metering
o Data stored in a central repository, so all historic data is easily accessible
o Channels can be configured to individual, zoning/group graph structure
o Graphing features such as zooming, custom axis, statistics including threshold
o Insert comments at points of interest on the graph
o Multi-user system with varying levels of user access
Darca Secure (DS) - 21 CFR Part 11

Darca Secure - (For use with Secure System)
o Data encrypted with a secure key
o Data not modified and is completely tamper proof
o User management & audit trail using guidelines for electronic signatures set out in 21 CFR Part 11.
o User Friendly configure all settings such as alarm
thresholds, logging, Text message telephone number
(Requires additional hardware)
o Allows data download and analysis
o Exportable to popular spreadsheets
o Real time metering
o Real time graphing
o Graphing features such as zooming, custom axis,
statistics including threshold
o Insert comments at points of interest on the graph
o Transmitter low battery warning

Additional Hardware

Auto Dialler

• Send a pre-recorded message when in alarm
• Up to 10 telephone numbers contacted in sequence
• Independent of the mobile network – require an analogue BT phone line/ Micro Sim Card (additional to the SIM card in the logger for GSM/ text alerts).
• Can be configured to send a pre-set text message in poor or no network environments.
• Can be setup to prioritise the use of the analogue line or mobile network
Moxa

• System Communicated over the LAN
• PC connections from multiple computers over the LAN
Repeaters

Repeaters -
The telemetry radio range can be hundreds of meters without the use of nodes requiring power. Furthermore, the range can be extended to cover large areas by strategic placement of repeaters.

The RP250GD repeater receives and rebroadcasts signals from transmitters, significantly extending the distance over which a system can operate. Multiple repeaters can be used in a system.

Repeating signals through RF barrirers -
The RP250GDDA has all the features of the RP250GD, with the addition of 2x antenna SMA connectors; with one antenna to be placed within the barrier, and one on the far side.
The RP250GD repeater receives and rebroadcasts signals from GenII transmitters, significantly extending the distance over which a system can operate. Multiple repeaters can be used in a system

Britannia's wireless monitoring and alarm solutions are essential for the protection of vital products.

A standard or secure wireless monitoring system is available. Both systems contain lots of similar features however the secure system has user management, audit trails and is 21 CFR part 11 compliant.

The wireless systems consist of a main panel that receives the wireless signals form the transmitters.

A variety of transmitter models are available that can monitor different input and ranges. Certain transmitter models can also ave multiple inputs. Sensor can be provided to monitor any requirement.

A software package is provided that allows the user to easily interact with the main panel to easily download, view and print the data collected. The simple user interface is also used to set and change settings such as alarm thresholds and text alert numbers (optional).

When an alarm is triggered the built in sounder and alarm LED’s are activated. When the alarm issue is resolved the system will reset and continue to log and monitor.

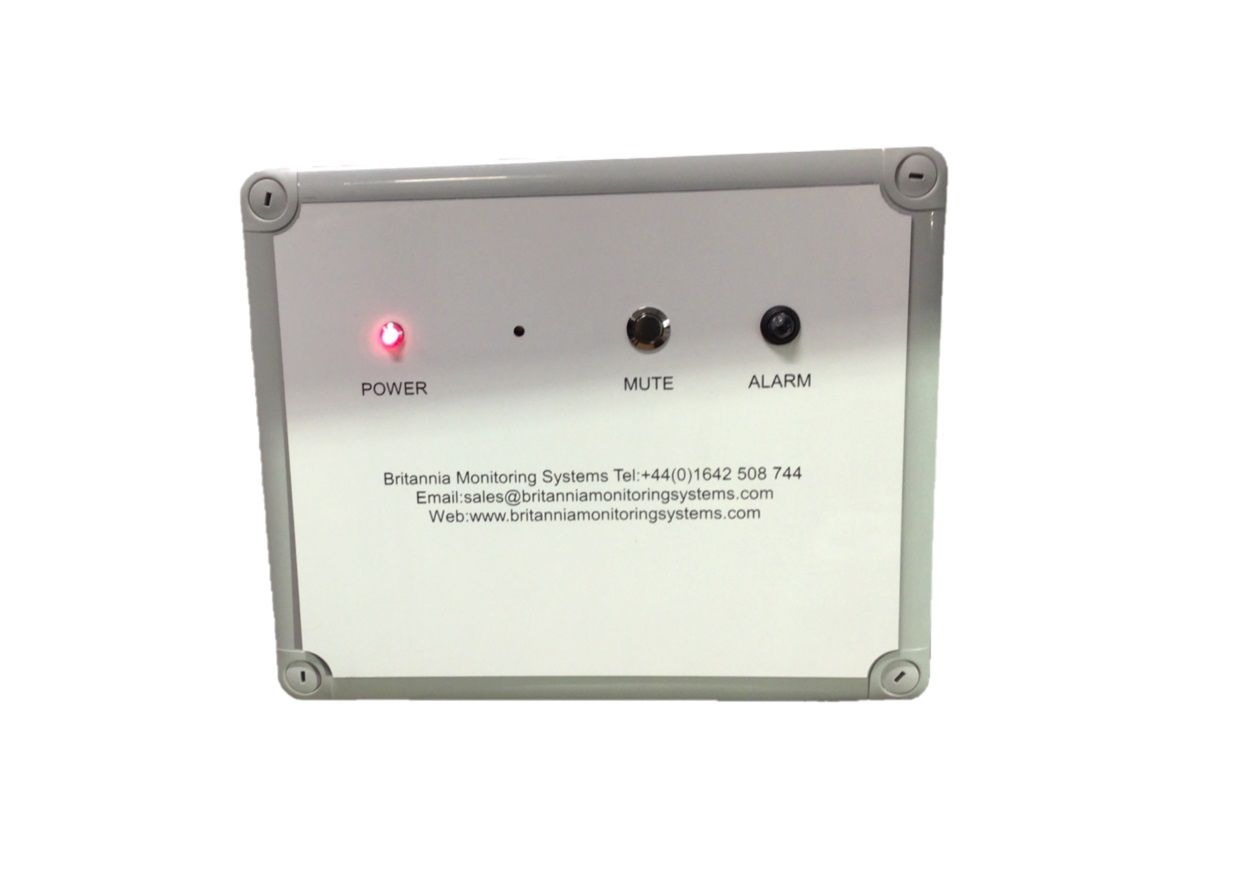

Main Panel

Photo By: John Doe
Button

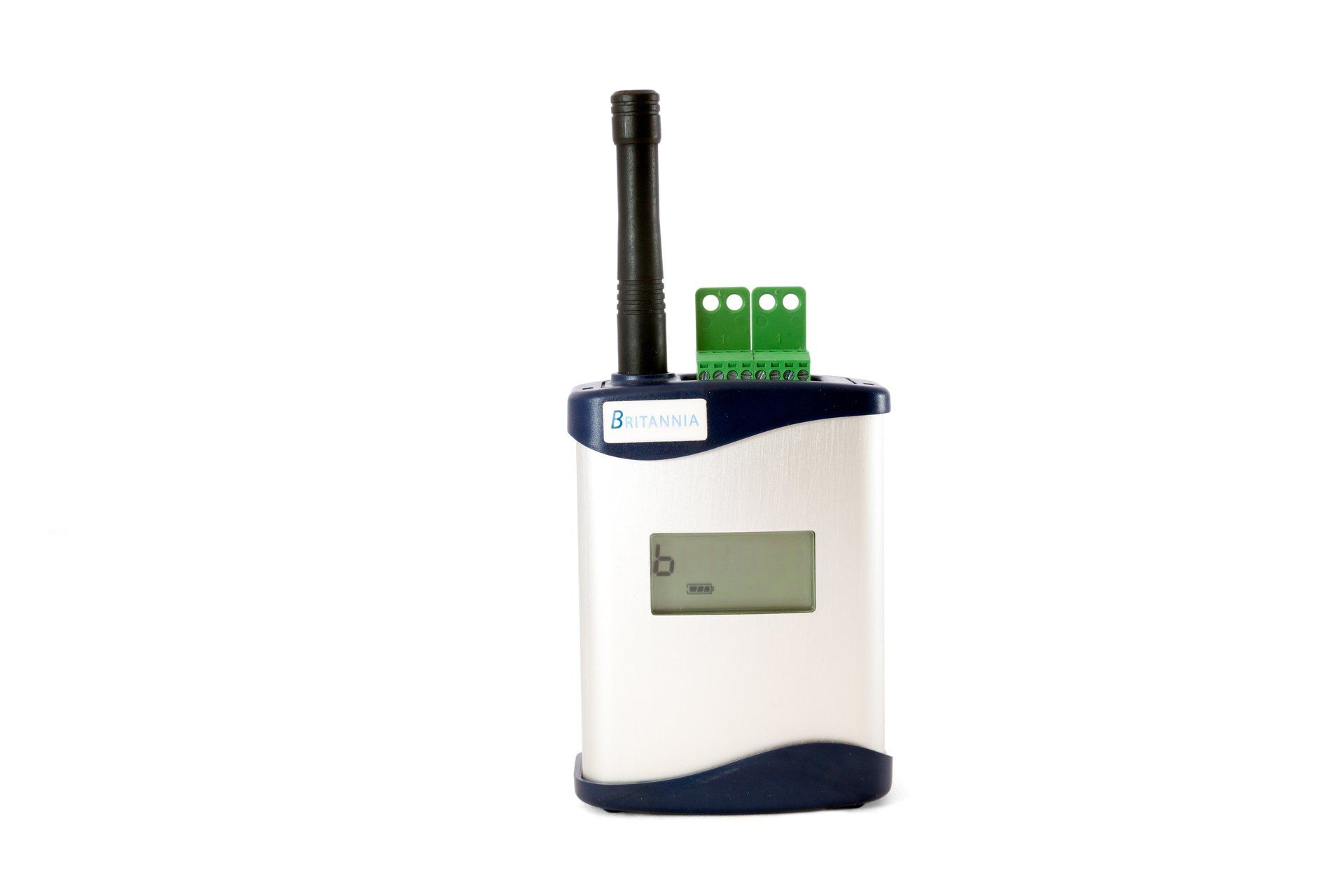

Wireless Transmitter

Photo By: John Doe
Button
Software

Photo By: John Doe
Button

Swipe left - Right for all options

Minimal Installation

Without the need to run cable installation time and disruption is kept at a minimal

250 Channels

Ability to monitor up to 250 channels, inputs or sensors

Auto Dialler

The unit can ring and deliver a prerecorded message to up to 10 numbers that requires acknowledgement.

Independent

The system does not rely on a PC or network connection. Fully standalone.

Transmitted data is Encrypted

Data is encrypted

MOXA

Communicate with the system over the LAN from multiple PC's

Battery Back Up

System has extended battery back up in case of mains failure.

2 KM
Transmissions

System can transmit up to 2 KM over open ground. Boosters are available for difficult or distant units.

Range of Software Packages

Selection of software packages depending on your needs

Text Unit

Optional text alarm unit

Can text up to 10 phone numbers that can be assigned to specific channels/ items of equipment.

Transmitters

Large range of transmitters that be configured to monitor anything!

21 CFR part 11

Systems that meet 21 CFR part 11 compliance available

The system can be configured and adapted to suit an endless range of needs. With a large range of transmitters that can be setup to measure various parameters or outputs from other items of equipment such as our gas monitors the system can monitor and alarm them all.

Because we manufacture the Labsafe system we have the ability to create a system to your specific needs.
