INCUBATOR CO2 MONITORING

Fixed Incubator Gas Monitor

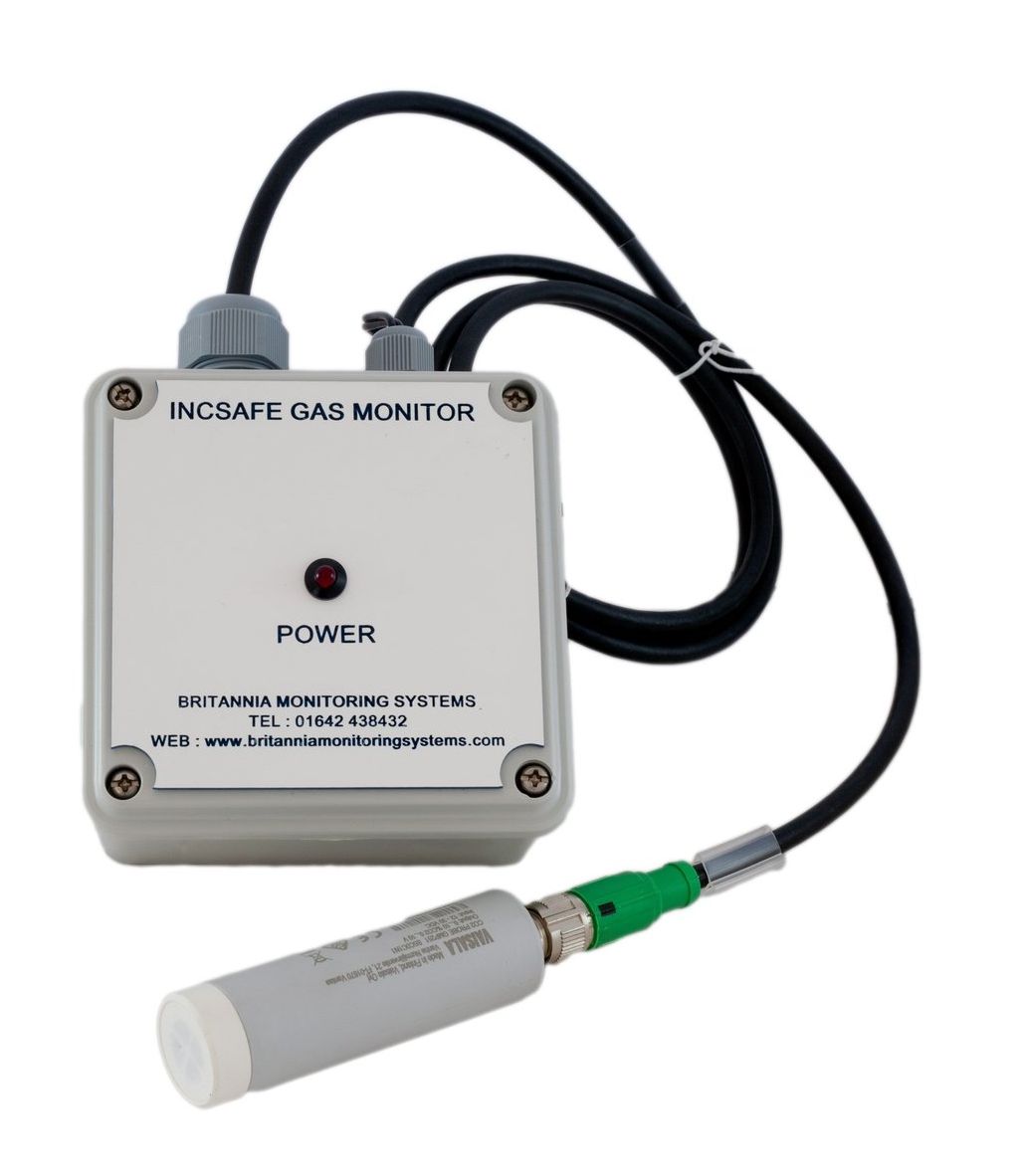

The INCSAFE gas monitor is for the measuring and alarming of carbon dioxide (CO2) concentration within an incubator or similar equipment environment. An INCSAFE is a standalone unit that contains a infra-red carbon dioxide sensor, LCD display showing the current CO2 concentration and an audible and visual alert to warn personnel in the event of an alarm. An analogue output can also be linked to third party monitoring equipment such as a LABSAFE monitoring system.


An upper and lower alarm threshold and a time delay can be programmed. The time delay enables normal operation of the equipment without triggering alarms such as opening the door.


Sensors have temperature and ambient pressure compensation and can be ranged 0...10% CO2, 0...20% CO2.


Each CO2 cell has an infinite life span depending on the measuring conditions and are available from Britannia. We also provide full installation, servicing, calibration and maintenance.

Info

Portable Incubator CO2/O2 Measurement

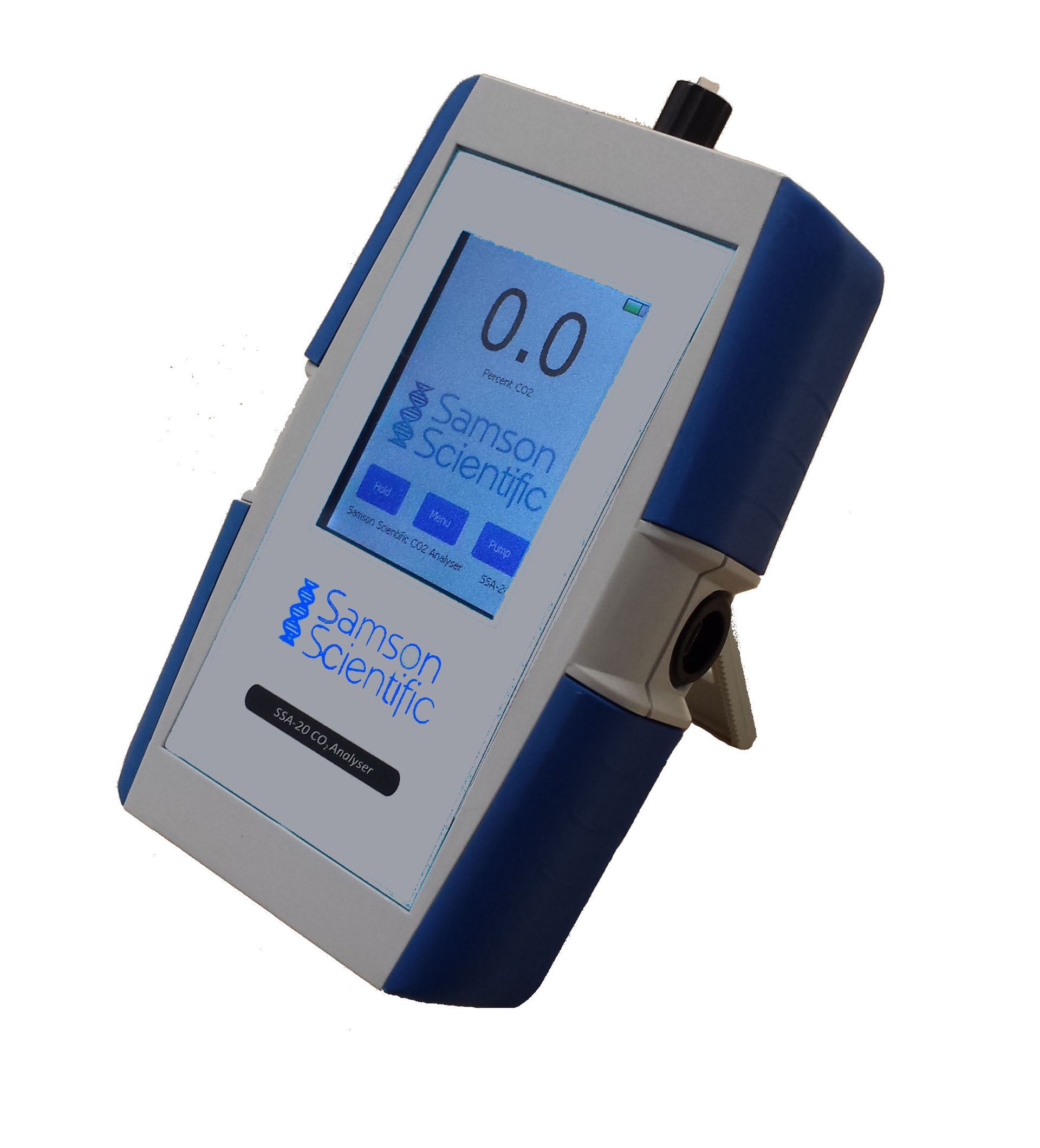

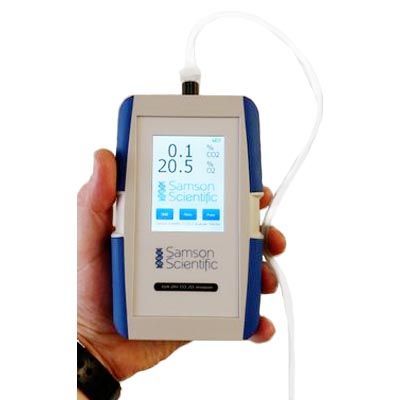

The SSA-20 is a handheld CO2/O2 analyser specially designed by Samson Scientific to measure, verify and validate the CO2 & O2 levels on CO2 Incubators. The SSA-20 offers the user an easy to use and accurate CO2 & O2 analysis tool with the backup of our excellent after sales support package.


Easy to use  - Fast and intuitive touch screen driven user interface.


It’s fast  - Solid state sensor technology with extremely fast start time and minimal warm up mean the SSA-20 can practically complete its full check and measurement cycle before other Analysers have even got the splash screen out of the way.

Buy Online

Minimal Installation

simple to install

User Test function

Test alarms at the push of a button

Features

  • CO2 0 - 20% measurement range
  • Easy-to-use large colour touch screen which can be operated while wearing gloves
  • Weighing only 315g and with a comfortable handheld case, the SSA-20 is convenient and easy to hold in continued use
  • Built in flip out tilting stand
  • USB charging


Analogue Output

Used to link to third party systems such as Building management system or Britannia wireless system

Option Available

Wireless connectivity available eliminating the need to run cables.

Key Benefits

  • Fast start – no splash screen and a minimal power up time of 6 seconds mean the SSA-20 is ready to start taking readings as soon as you are
  • Quick and accurate verification of Incubator CO2 readings within the 0 20% range
  • No regular span calibration required & Rapid Air Zero Calibration in 90 seconds

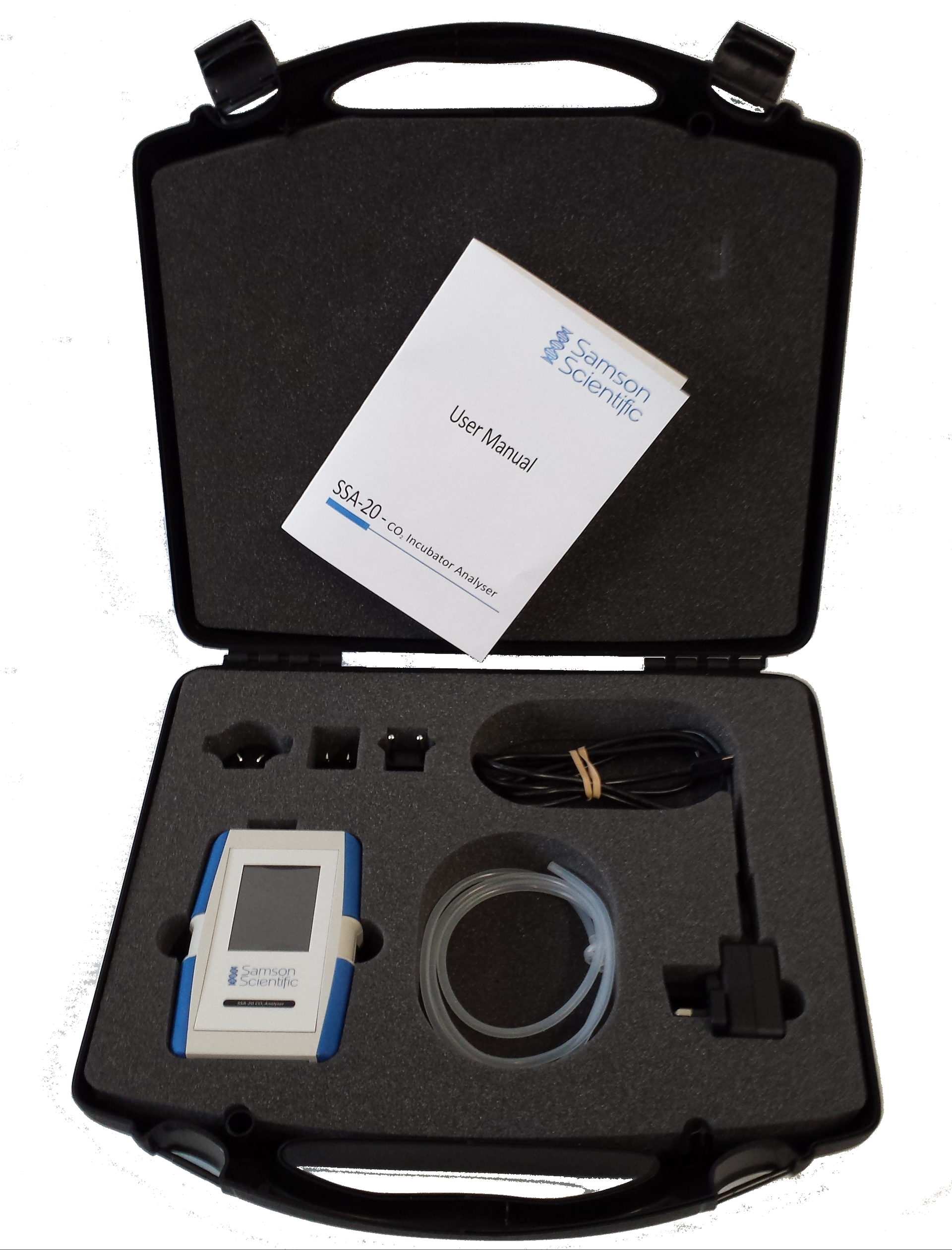

What do you get?

  • SSA-20 CO2 Analyser
  • 1 metre of sample tubing with filter
  • Spare Filter
  • Hard Carry Case
  • Mains charger kit supplied with pack of 4 AC heads; UK, US, EU and AU
  • USB A Male – Right Angle Mini USB
  • User Manual
  • Calibration certificate (instruments are calibrated and tested using certified gases which are traceable to UK National Standards).

Applications:



  • IVF
  • Laboratories
  • Research
  • Medical

Overview

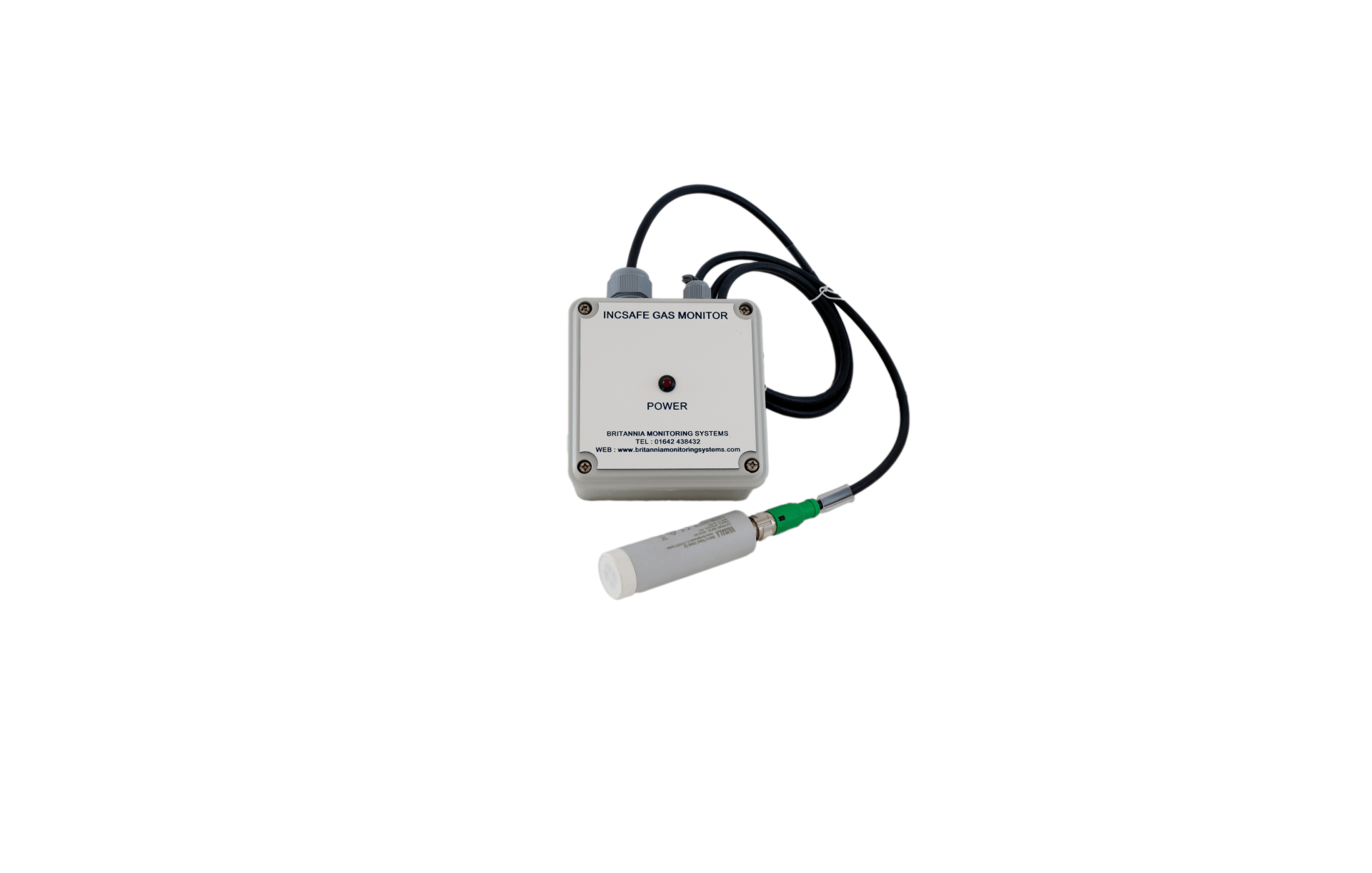

The INCSAFE gas monitor is for the measuring and alarming of carbon dioxide (CO2) concentration within an incubator or similar equipment environment. An INCSAFE is a standalone unit that contains a infra-red carbon dioxide sensor, LCD display showing the current CO2 concentration and an audible and visual alert to warn personnel in the event of an alarm. An analogue output can also be linked to third party monitoring equipment such as a LABSAFE monitoring system.


An upper and lower alarm threshold and a time delay can be programmed. The time delay enables normal operation of the equipment without triggering alarms such as opening the door.


Sensors have temperature and ambient pressure compensation and can be ranged 0...10% CO2, 0...20% CO2.


Each CO2 cell has an infinite life span depending on the measuring conditions and are available from Britannia. We also provide full installation, servicing, calibration and maintenance.

Incubator CO2

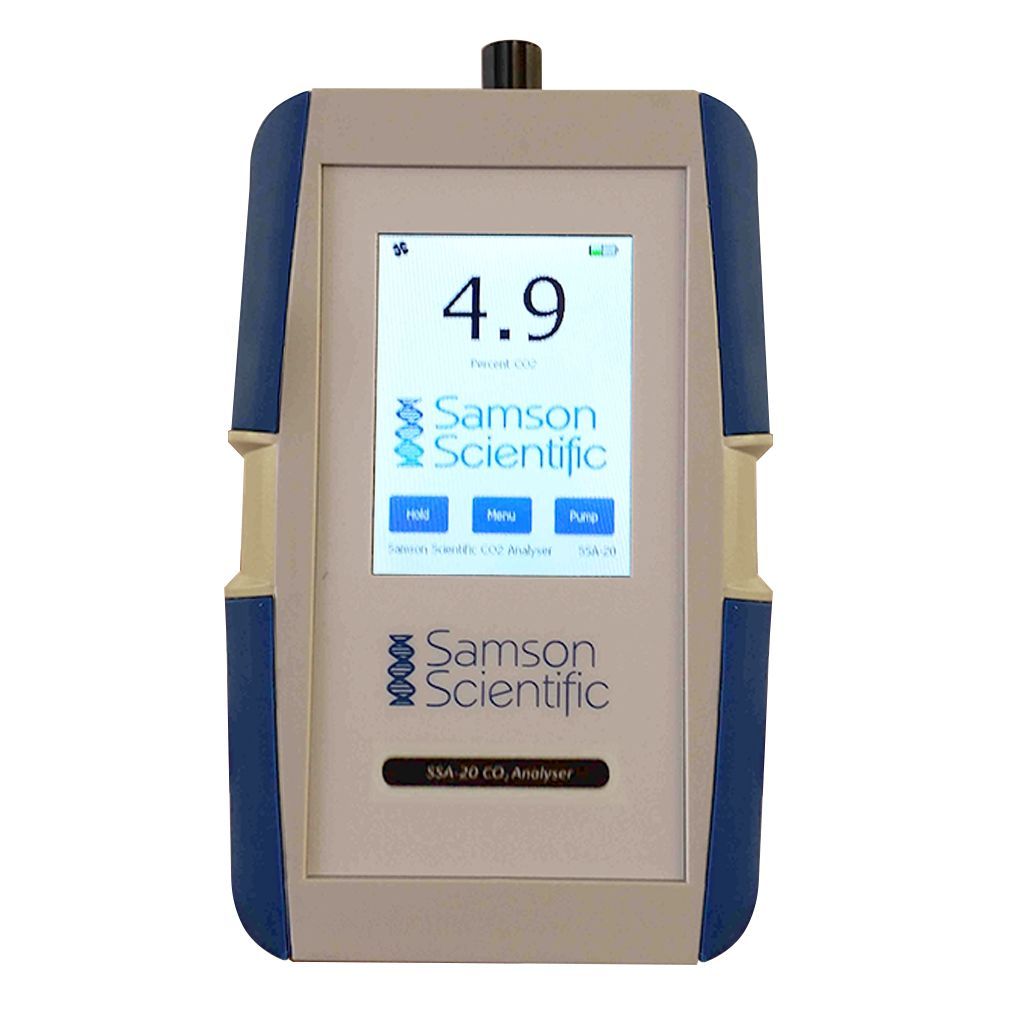

The SSA-20 is a handheld CO2 analyser specially designed by Samson Scientific to measure, verify and validate the CO2 levels on CO2 Incubators. The SSA-20 offers the user an easy to use and accurate CO2 analysis tool with the backup of our excellent after sales support package.

Easy to use  - Fast and intuitive touch screen driven user interface.

It’s fast  - Solid state sensor technology with extremely fast start time and minimal warm up mean the SSA-20 can practically complete its full check and measurement cycle before other Analysers have even got the splash screen out of the way.

Features

  • CO2 0 - 20% measurement range
  • Easy-to-use large colour touch screen which can be operated while wearing gloves
  • Weighing only 315g and with a comfortable handheld case, the SSA-20 is convenient and easy to hold in continued use
  • Built in flip out tilting stand
  • USB charging



Key Benefits

  • Fast start – no splash screen and a minimal power up time of 6 seconds mean the SSA-20 is ready to start taking readings as soon as you are
  • Quick and accurate verification of Incubator CO2 readings within the 0 20% range
  • No regular span calibration required & Rapid Air Zero Calibration in 90 seconds


What do you get?

  • SSA-20 CO2 Analyser
  • 1 metre of sample tubing with filter
  • Spare Filter
  • Hard Carry Case
  • Mains charger kit supplied with pack of 4 AC heads; UK, US, EU and AU
  • USB A Male – Right Angle Mini USB
  • User Manual
  • Calibration certificate (instruments are calibrated and tested using certified gases which are traceable to UK National Standards).


Applications:



  • IVF
  • Laboratories
  • Research
  • Medical
